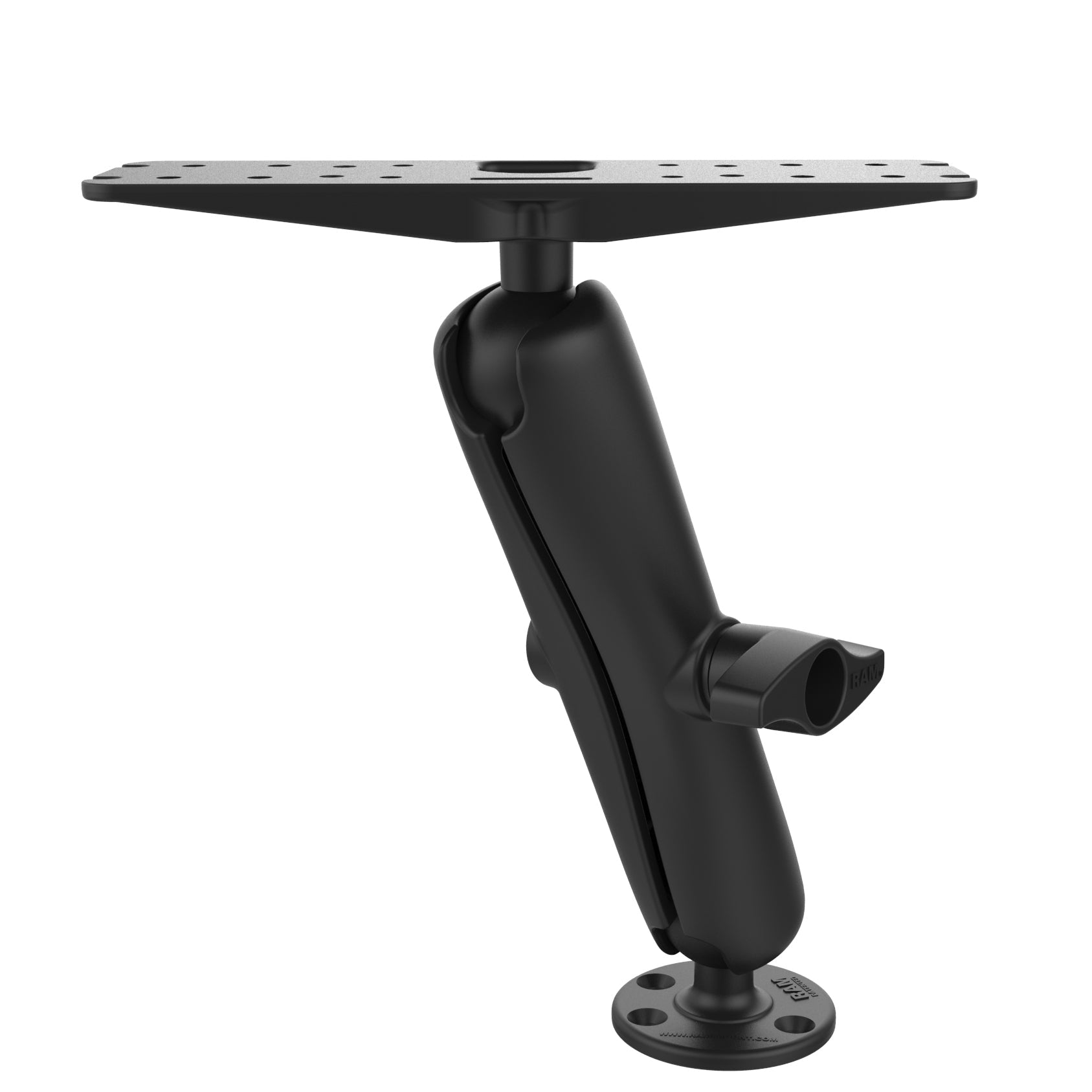

RAM Mounts Large Marine Electronics Mount – D-Size Long Arm for Fish Finders & Chartplotters (RAM-D-111U-E)

A complete drill-down mount for a large fish finder or chartplotter, built on RAM's heaviest D-size 2.25 in ball so a big screen stays put in a chop. The long arm gives the height and reach to angle the display away from glare.

This is the long-arm version. RAM-D-111U is the same mount with a medium arm, for helms where a long reach would put the screen in the way.

Specs

• In the box: ball base with 3.68 in round plate, long double socket arm, 11 in x 3 in rectangle display plate
• Ball size: D size, 2.25 in throughout
• Overall height: 16.03 in
• Installation: drill-down
• Brand: RAM Mounts
• Manufacturer Part Number: RAM-D-111U-E

Fit: bolts down to a flat deck, console or dash with room for the 3.68 in round base. The display plate is drilled to suit the unit's own bracket.
